How to Replace the USB Charging Port Flex Cable on Your Moto One 5G ACE (XT2113)
Restore Power to Your Device with a Simple Repair
If your Moto One 5G ACE (XT2113) is no longer charging or only charges at a certain angle, the culprit is likely a damaged USB charging port. Instead of replacing the entire phone or relying on unreliable wireless solutions, a charging port flex cable replacement is a cost-effective and relatively straightforward fix.
In this post, we’ll walk you through everything you need to know about the USB Charging Port Flex Cable Replacement for the Motorola Moto G 5G 6.7″ XT2113 including signs of a failing port, replacement tips, and where to find the right part.
Symptoms of a Faulty USB Charging Port
Before jumping into the replacement, it’s helpful to confirm the issue. Here are common signs that your USB charging port may need replacing:
- Phone doesn’t charge at all
- Charging is inconsistent or stops abruptly
- USB cable doesn’t fit snugly or wiggles in the port
- Device not recognized when connected to a PC
- Overheating near the charging port
If you’re experiencing one or more of these, it’s time for a new charging dock flex cable.
What You’ll Need

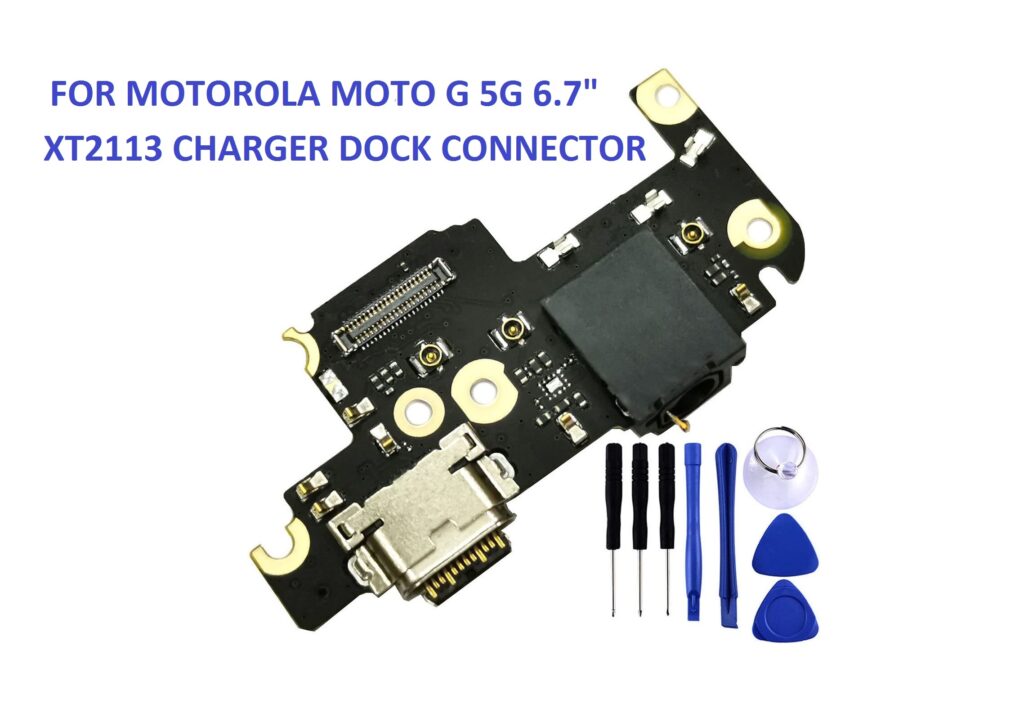

- Replacement USB Charging Port Flex Cable for Moto G 5G (XT2113)
- Precision screwdriver set
- Plastic pry tools or spudger
- SIM tray ejector tool
- Tweezers
- Heat gun (optional for easier opening)
- Anti-static wrist strap (recommended)
Important: Proceed only if you’re comfortable working with delicate electronics. If not, seek help from a professional technician.
Step-by-Step Replacement Guide
- Power Off the Device
Disconnect the device completely to avoid short circuits. - Remove the SIM Tray
Use the SIM ejector tool to remove the SIM card tray. - Open the Back Cover
Carefully heat the edges to soften adhesive. Use a plastic pry tool to lift the back cover. Take your time to avoid cracking it. - Disconnect the Battery
Before doing anything else, disconnect the battery to prevent accidental damage. - Locate the Charging Port Flex Cable
The USB-C charging port is part of the bottom flex cable assembly. Remove the screws securing the protective shield (if present), then detach the cable using tweezers or a spudger. - Replace the Charging Port Flex Cable
Gently remove the damaged flex cable and install the new one in its place. Align the port and ensure all connectors are secure. - Reassemble the Device
Reconnect the battery, reattach all shields and screws, snap the back cover into place, and reinsert the SIM tray. - Test the Charging Port
Plug in your charger to ensure the new port is working correctly. Your phone should now charge reliably and connect to data via USB.
Where to Buy a Replacement

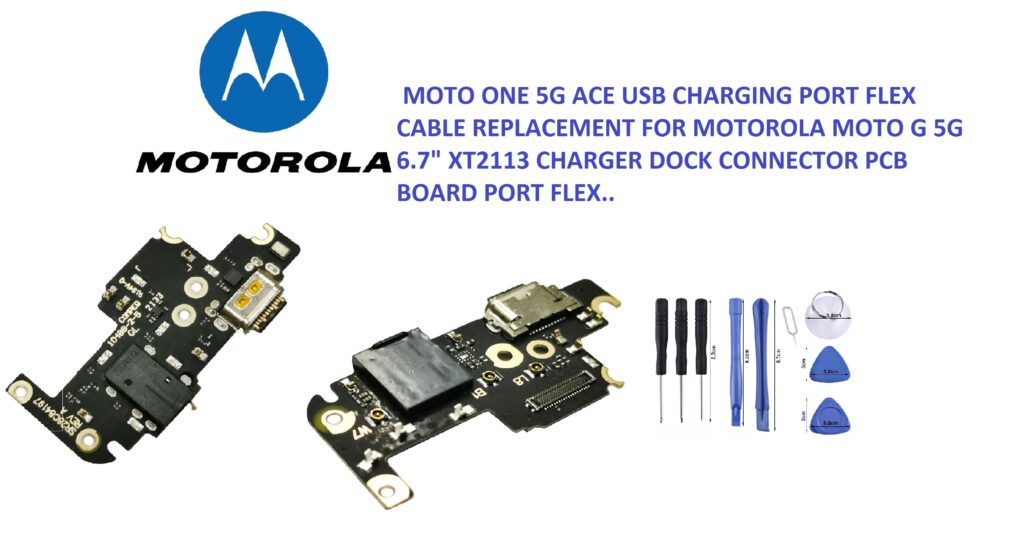

Look for Moto One 5G ACE USB Charging Port Flex Cable specifically for model XT2113. Many reliable sellers on eBay, Amazon, and specialized phone parts websites stock them. Ensure the part matches the following:
- Compatible with Motorola Moto G 5G 6.7″ (XT2113)
- Includes the USB-C port and connector flex cable
- High-quality PCB construction
Final Thoughts
Replacing the USB charging port flex cable on your Moto One 5G ACE is a practical fix that can save you the cost of a new phone. With some patience and the right tools, you can breathe new life into your device and restore fast, stable charging.
Have you tried replacing a USB charging port before? What tips or tools helped you the most?
Would you like a printable step-by-step PDF or a visual diagram for this repair?
