The Huawei Honor 200 Pro (model ELP-AN00) is a powerhouse smartphone known for its sleek design and vibrant display. However, like all devices, it’s not immune to accidents. Cracked screens, unresponsive touch, or flickering displays are common issues that can leave your phone unusable.
If you’re dealing with any of these problems, replacing the LCD display and touch digitizer assembly is often the best solution. In this guide, we’ll walk you through everything you need to know about the Huawei Honor 200 Pro LCD replacement from choosing the right part to performing the replacement process.

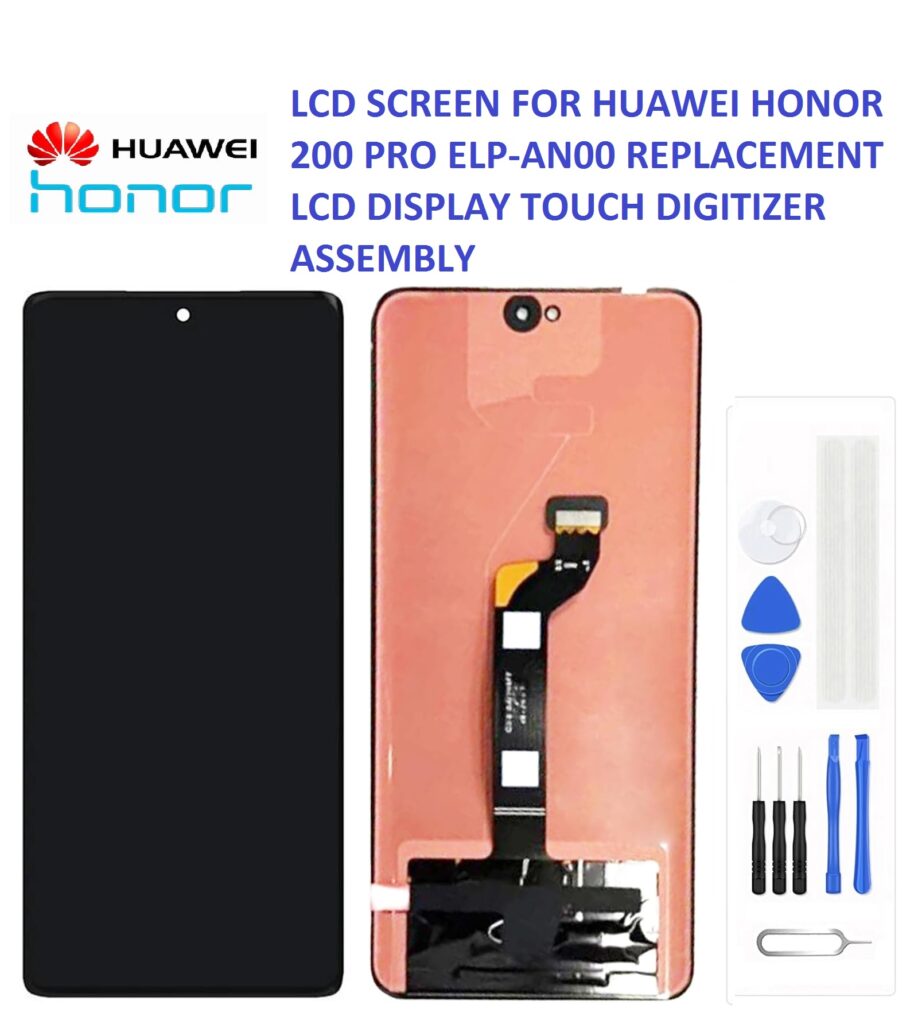

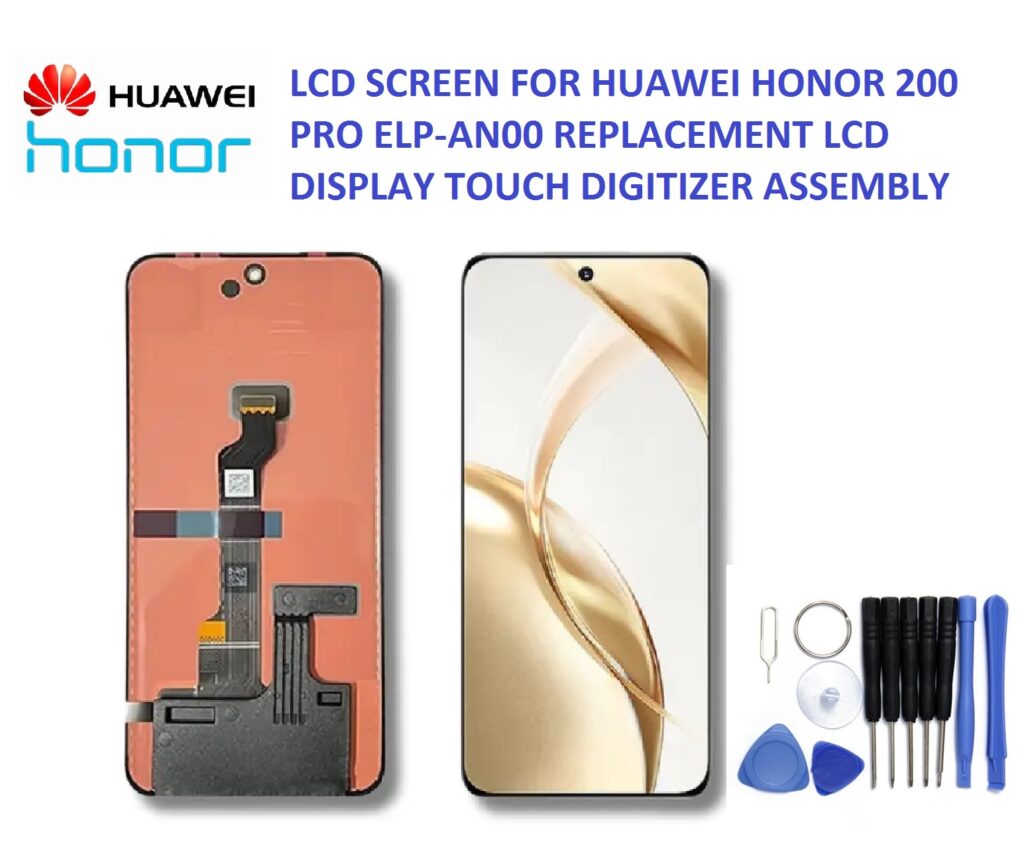

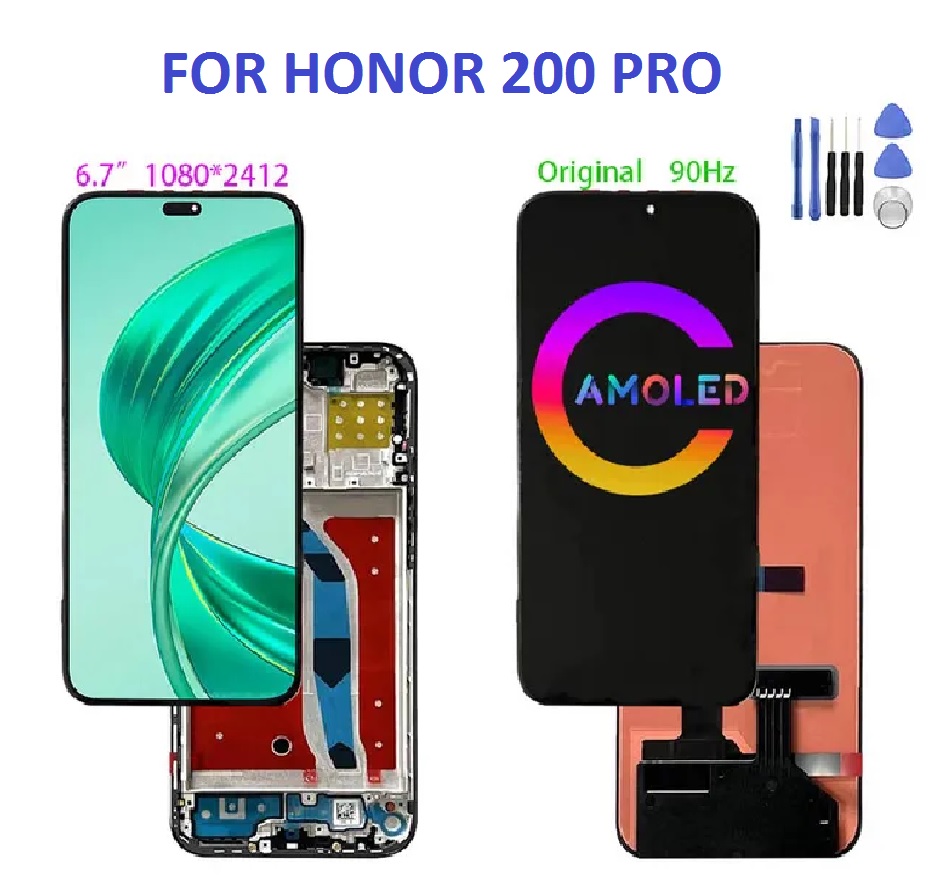

What Is Included in the LCD Display + Touch Digitizer Assembly?
When shopping for a replacement screen for the Huawei Honor 200 Pro ELP-AN00, make sure you’re getting a full assembly, which usually includes:
- LCD Screen Panel The main display component responsible for visual output.
- Touch Digitizer The outer layer that registers touch input.
- Frame (optional) – Some replacement units come pre-installed in a frame, which simplifies the replacement process.
- Connector Flex Cables To attach the new screen to the phone’s motherboard.
Look for OEM or high-quality aftermarket parts to ensure the best results.
Tools You’ll Need
Before starting the replacement, gather the following tools:
- Phillips and Torx screwdrivers
- Plastic opening tools
- Suction cup
- SIM ejector tool
- Tweezers
- Heat gun or hairdryer
- Isopropyl alcohol and lint-free cloth
- Anti-static gloves or wrist strap (optional but recommended)
Step-by-Step LCD Screen Replacement Process
Important: Screen replacement may void your warranty. Proceed at your own risk or consult a professional technician.
1. Power Off the Device
Shut down your Huawei Honor 200 Pro completely to avoid short circuits.
2. Remove SIM Tray
Use a SIM ejector tool to remove the SIM card tray.
3. Heat the Back Cover
Gently heat the edges of the back cover with a heat gun or hairdryer for 1-2 minutes to loosen the adhesive.
4. Pry Open the Back Cover
Use a suction cup and plastic tools to lift the back cover. Slide a plastic pick around the edges. Be patient to avoid cracking the glass.
5. Disconnect the Battery
Locate and unscrew the battery shield. Disconnect the battery flex cable to prevent power from flowing during repair.
6. Remove the Old Display
- Disconnect the display flex cable.
- Use heat again around the edges of the front screen.
- Carefully pry off the broken LCD and digitizer using a thin plastic tool. Avoid damaging the internal components.
7. Clean the Frame
Remove leftover adhesive using isopropyl alcohol and a lint-free cloth. Ensure the frame is clean and smooth.
8. Install the New Display
- If your new display comes with a frame, align and secure it using screws.
- If it’s a bare screen, apply adhesive around the edges and press it into the frame.
- Connect the new display’s flex cable to the motherboard.
9. Reconnect Battery and Test
Before sealing everything up, temporarily reconnect the battery and power on the phone to test the new screen. Check for display quality and touch response.
10. Reassemble the Phone
- Once satisfied, reattach all shields and screws.
- Press the back cover into place. Use a clamp or rubber bands to ensure it bonds securely if using fresh adhesive.
- Reinsert the SIM tray.
Testing and Calibration
After the installation:
- Test the screen in bright and dim light.
- Check all areas of the touchscreen.
- Test fingerprint sensors and facial recognition if they are screen-integrated.
- Calibrate brightness and color settings if needed.
OEM vs. Aftermarket Screens: Which Should You Choose?
- OEM (Original Equipment Manufacturer): Best quality and exact match but usually more expensive.
- High-Quality Aftermarket: Affordable and functional, though sometimes slightly less vibrant or responsive.
Choose based on your budget and how much you value screen performance.
Where to Buy the Huawei Honor 200 Pro ELP-AN00 Replacement LCD
You can find the replacement screens on platforms like:
- AliExpress
- eBay
- Amazon
- Repairpartshub.net
Always check reviews and confirm compatibility with model ELP-AN00.
DIY or Professional Repair?
If you have experience with smartphone repairs, the replacement is definitely doable at home with the right tools and patience. However, if you’re unsure, consider taking it to a certified technician to avoid the risk of damaging your device further.
Final Thoughts
Replacing the LCD screen and digitizer on your Huawei Honor 200 Pro ELP-AN00 can breathe new life into your phone. With the right tools, quality parts, and careful attention to detail, you can restore your device’s functionality and aesthetics.
Whether you’re a DIY enthusiast or a professional repair technician, this guide offers a roadmap to getting your Honor 200 Pro back in action. Just remember patience and precision are key!
