Is your OPPO Find X5 Pro CPH2305 suffering from a cracked screen, unresponsive touch, or display discoloration? A damaged display can seriously affect your phone’s usability and appearance but there’s a reliable solution. Replacing it with an AMOLED LCD screen and digitizer full assembly can make your device look and feel brand new again.
In this blog, we’ll walk you through the benefits of using a full assembly replacement and the step-by-step screen replacement process.
Why Choose a Full Assembly Replacement?

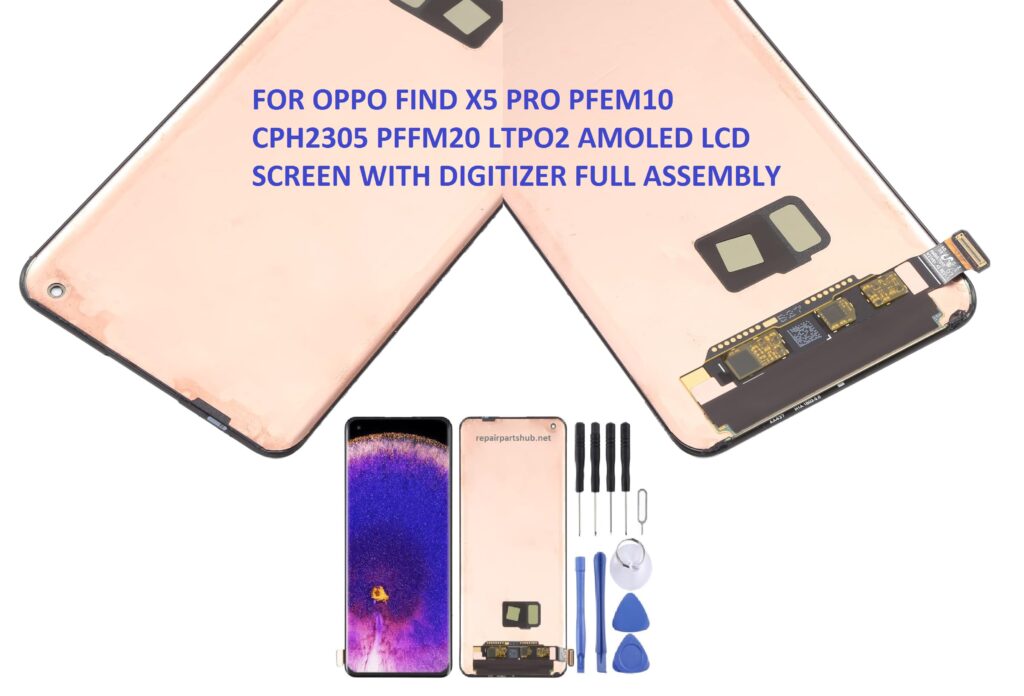

The AMOLED LCD screen with digitizer full assembly is the complete solution for screen damage. It includes:
- AMOLED Display Panel – Delivers vibrant colors, deep blacks, and excellent viewing angles.
- Capacitive Touch Digitizer – Ensures accurate and responsive touch functionality.
- Pre-bonded Assembly – The screen and digitizer are factory-laminated for perfect alignment and durability.
This package is specifically designed for the OPPO Find X5 Pro model CPH2305, ensuring perfect fit and functionality.
Key Features
- Compatible with OPPO Find X5 Pro CPH2305
- 100% Original AMOLED Panel
- Pre-installed Digitizer for Touch Accuracy
- Easy Installation with No Need for Additional Bonding
- Supports In-Display Fingerprint Scanner
Tools You’ll Need
Before starting, gather these tools:
- Precision screwdriver set
- Plastic pry tools
- Suction cup
- SIM card ejector
- Heat gun or hairdryer
- Tweezers
- Isopropyl alcohol and cleaning cloth
Important:
Backup your data before proceeding. This process can void your warranty if not done by a professional.
Step-by-Step Screen Replacement Guide
Step 1: Power Off and Remove SIM Tray
Turn off your phone and remove the SIM card tray using the ejector tool.
Step 2: Heat the Back Cover
Use a heat gun or hairdryer to warm the edges of the back cover. This softens the adhesive.
Step 3: Pry Open the Back Cover
Use a suction cup to lift the back panel slightly. Slide a plastic pry tool around the edges to gently detach the back cover. Be careful not to damage the fingerprint cable if it’s attached to the back.
Step 4: Disconnect the Battery
Unscrew the mid-frame cover and disconnect the battery first to avoid short circuits.
Step 5: Remove the Old Screen
Disconnect the screen flex cable from the motherboard. Use heat again to loosen the screen’s adhesive, and gently pry it off the frame.
Step 6: Clean the Frame
Remove any leftover adhesive from the frame using isopropyl alcohol and a lint-free cloth.

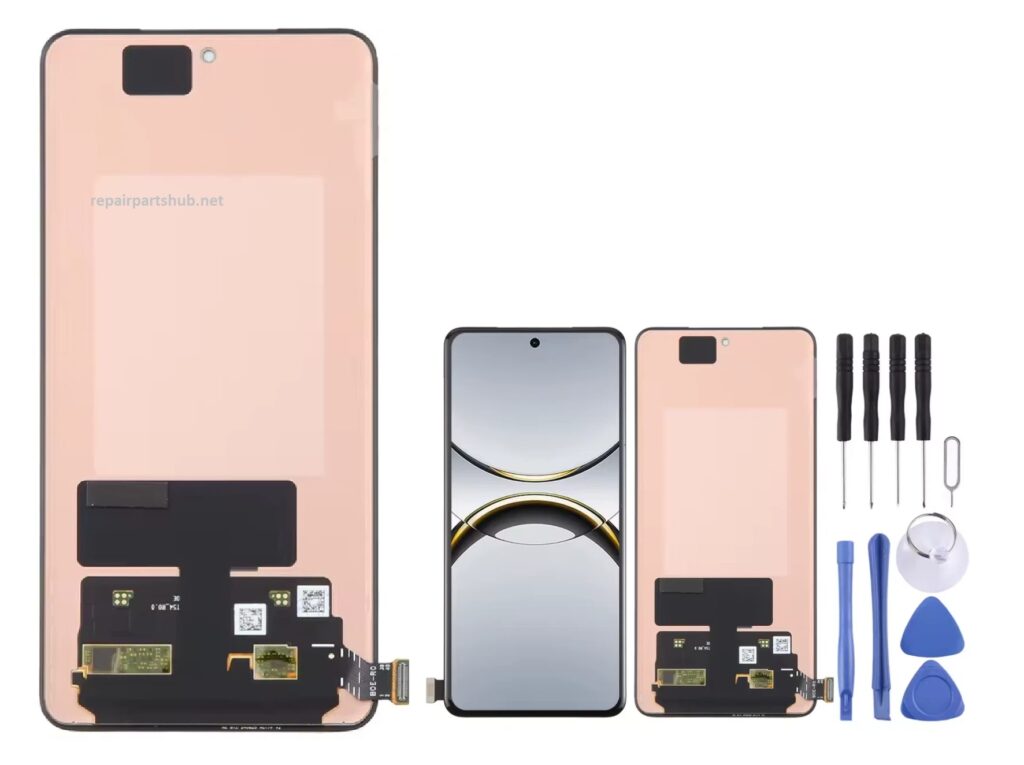

Step 7: Install the New Screen
Carefully align the new AMOLED LCD screen and digitizer assembly. Connect the display cable to the motherboard and test the screen before sealing the phone.
Step 8: Reassemble the Phone
Reconnect the battery, secure the mid-frame, and reattach the back cover using adhesive. Apply gentle pressure around the edges to seal it.
Final Tips
- Test all functions (touch, display, fingerprint scanner, etc.) before sealing the back cover.
- Use high-quality replacement parts to ensure durability and performance.
- If you’re unsure about the process, consider professional repair services.
Conclusion
The OPPO Find X5 Pro CPH2305 AMOLED LCD screen with digitizer full assembly is a cost-effective and efficient solution for broken screens. With the right tools and careful steps, you can successfully restore your device to factory condition. Whether you’re a DIY enthusiast or looking for guidance before handing it off to a technician, this guide covers everything you need to know.
Looking for original parts or professional installation support? Contact us today or drop your questions in the comments!
